Steadicam

Steadicam Axis

Regular price $ 8,995.00 USD
Regular price Sale price $ 8,995.00 USD
Sale Sold out
Shipping calculated at checkout.

The Steadicam Axis is the first Steadicam system to offer Volt technology for roll, tilt, and pan axes, providing increased stability and control. This Emmy® Award-winning Volt™ electronically assisted, 3-axis camera stabilizer enables the operator to directly control the framing of the shot without feeling disconnected from the camera. Operators can create dynamic camera movements with faster setup times, greater range of movement, and a shallower learning curve than earlier electronic gimbal systems. Time-saving features also include absolute encoding for the pan axis and the lack of a need to realign the sled upon startup. The Axis supports up to 20 lb loads when used with the included A-30 arm and A-30 vest.

Features:

    • For DSLRs and Cinema Cameras
    • 3-Axis Motorized Volt™ Gimbal
    • 20 lb (9 kg) payload

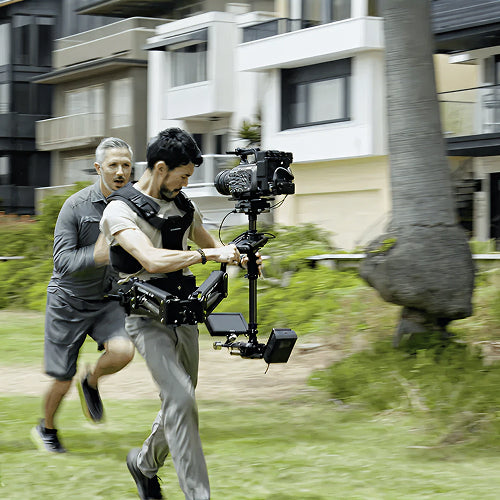

    • Body-worn system includes Arm & Vest
    • Hands-on, direct control of camera framing
    • Time-saving features for faster setup

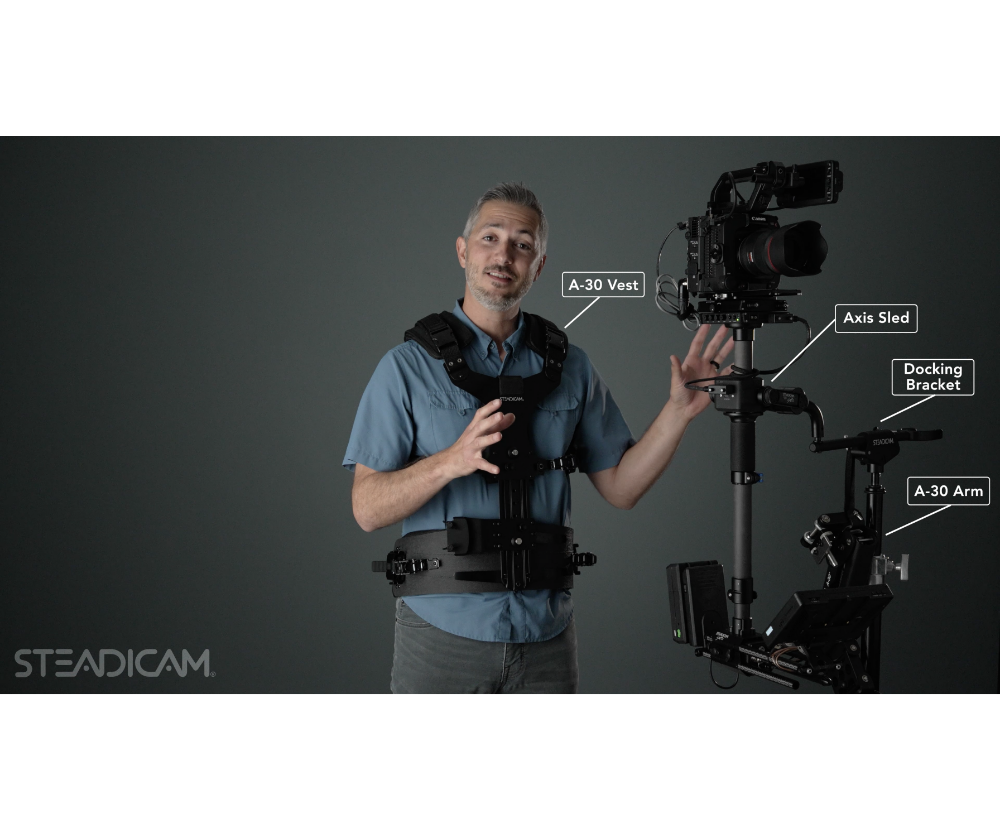

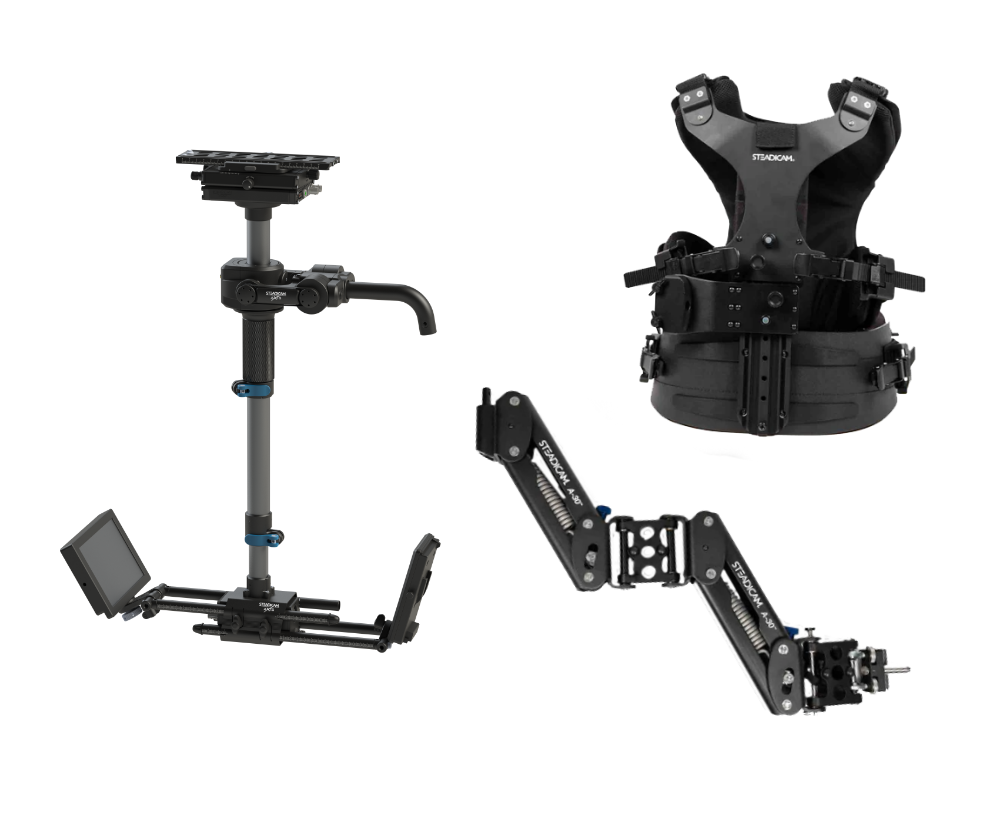

What's Included:

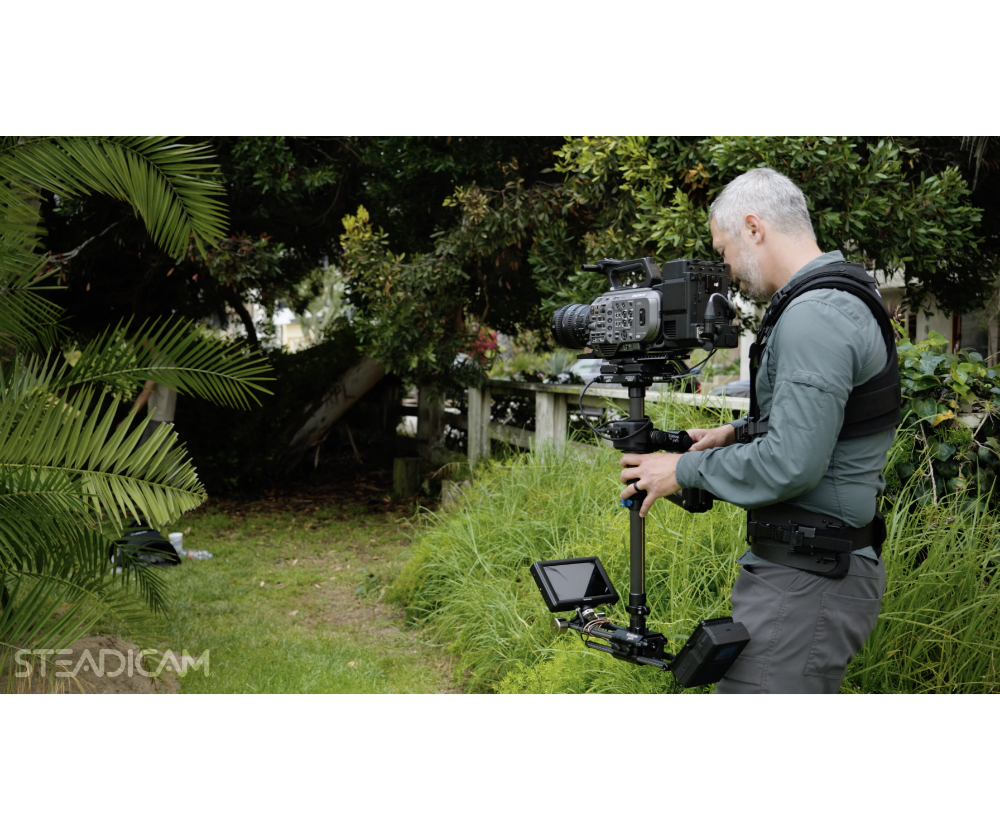

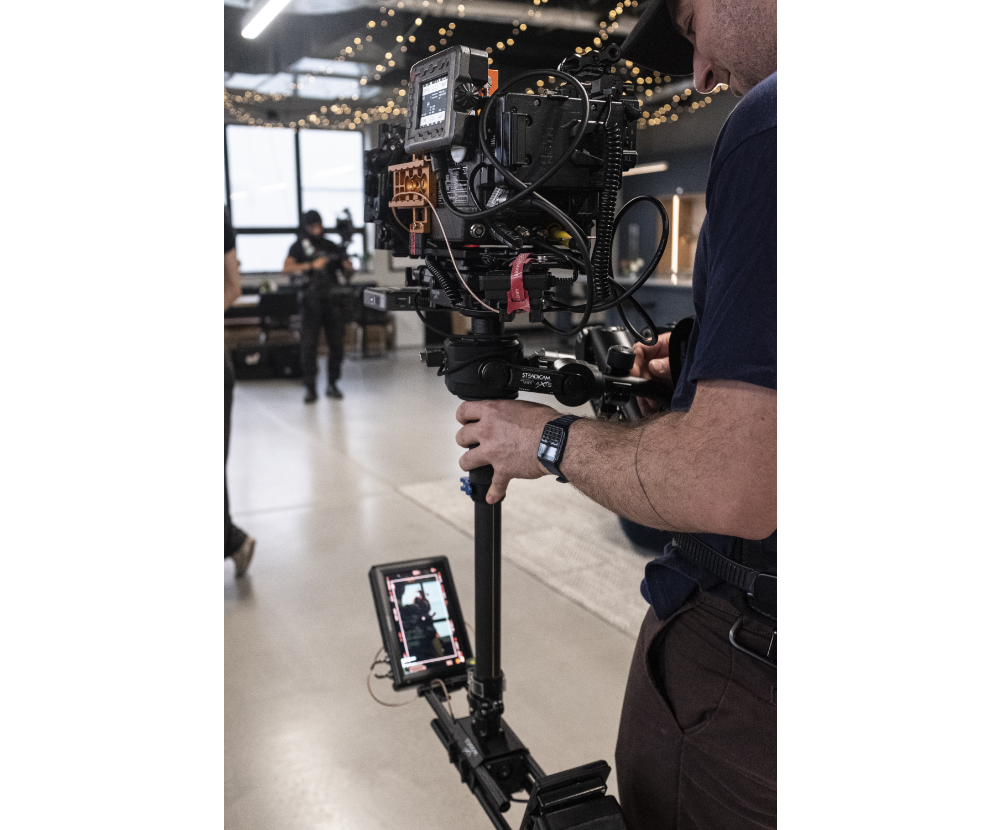

    • Steadicam Axis Sled with 3-Axis Volt System and Monitor

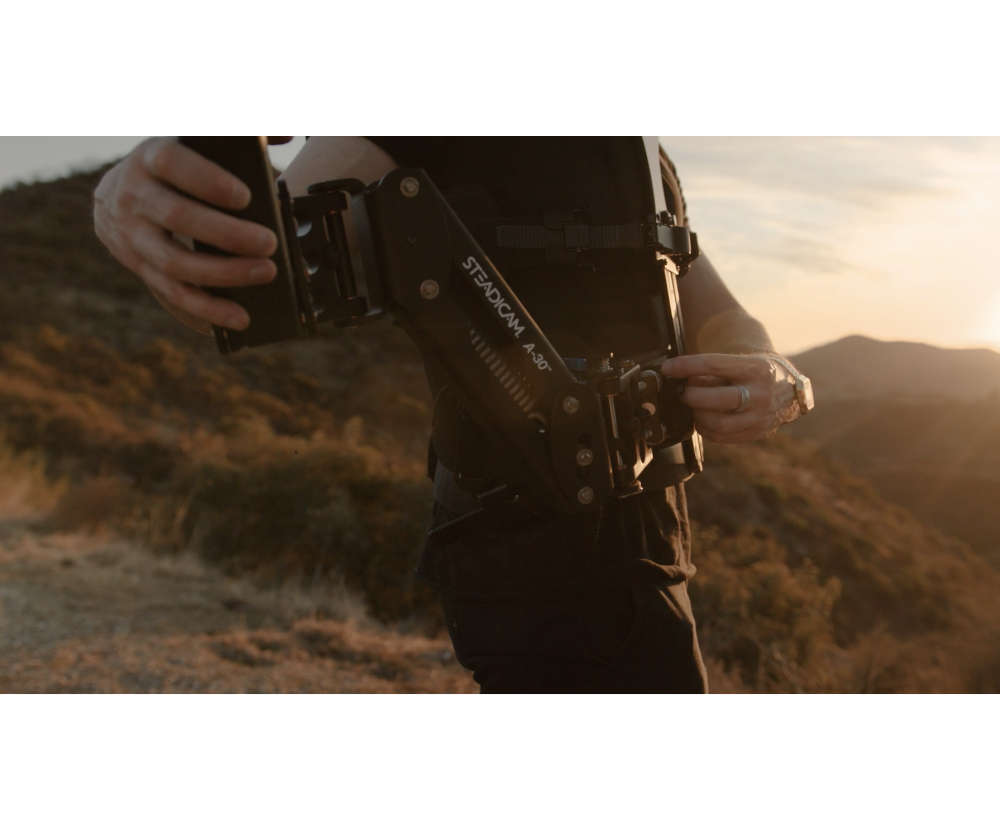

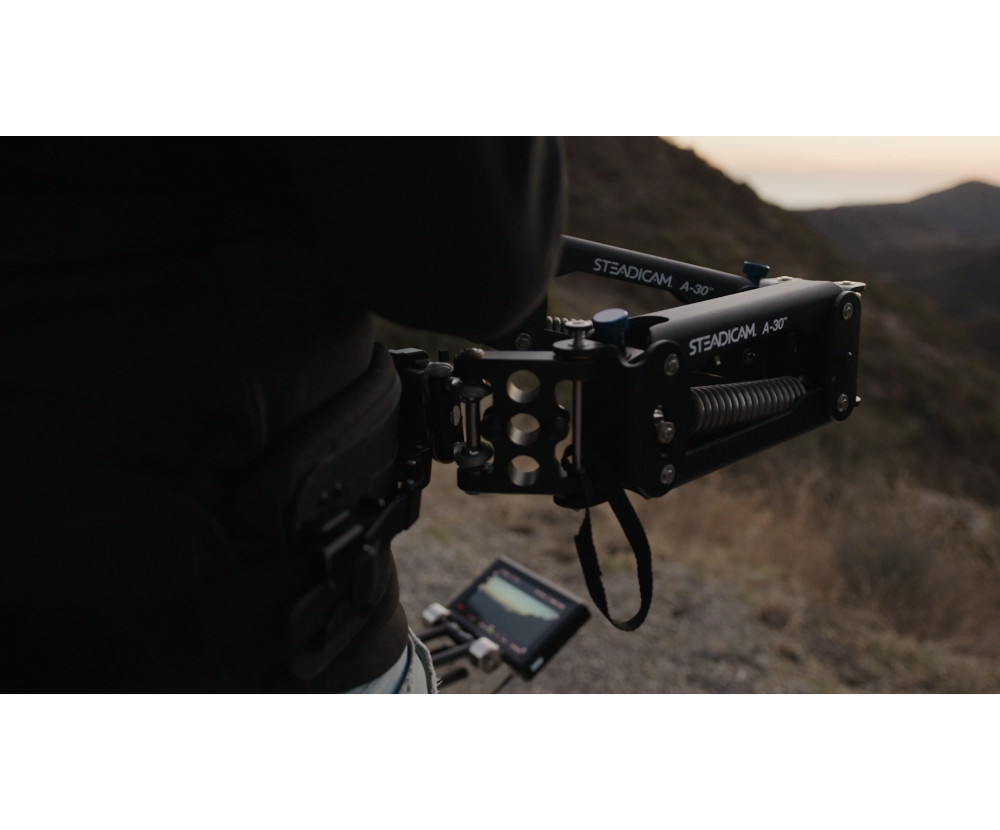

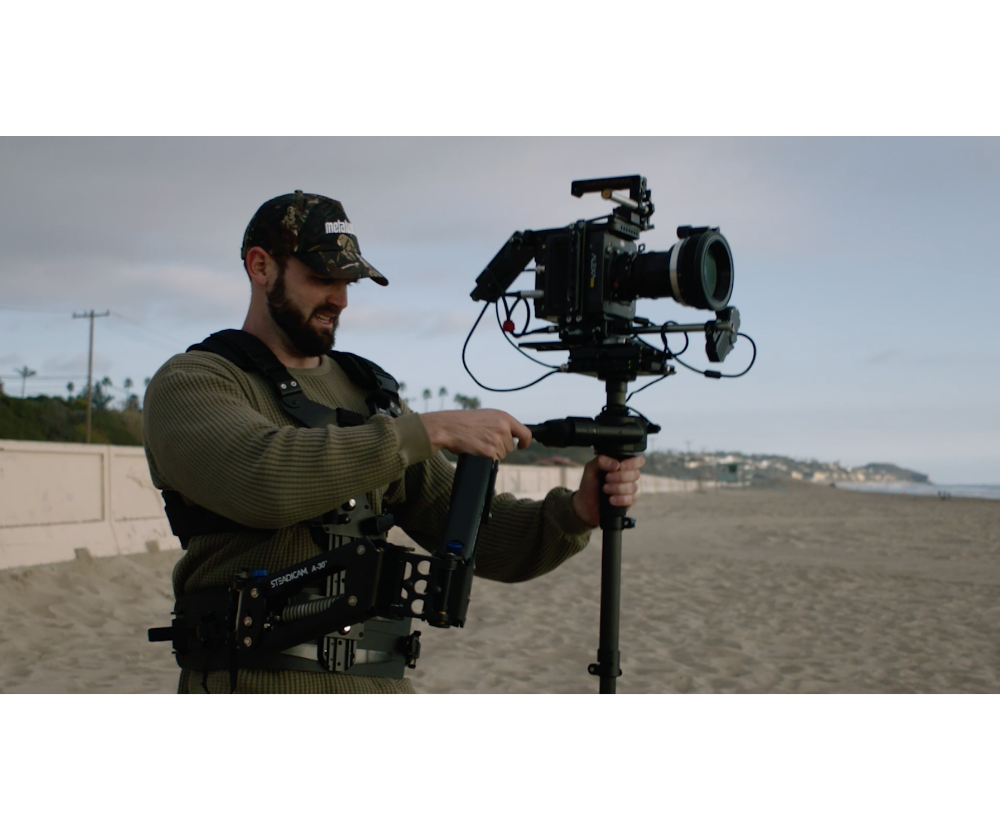

    • Steadicam A-30 Arm

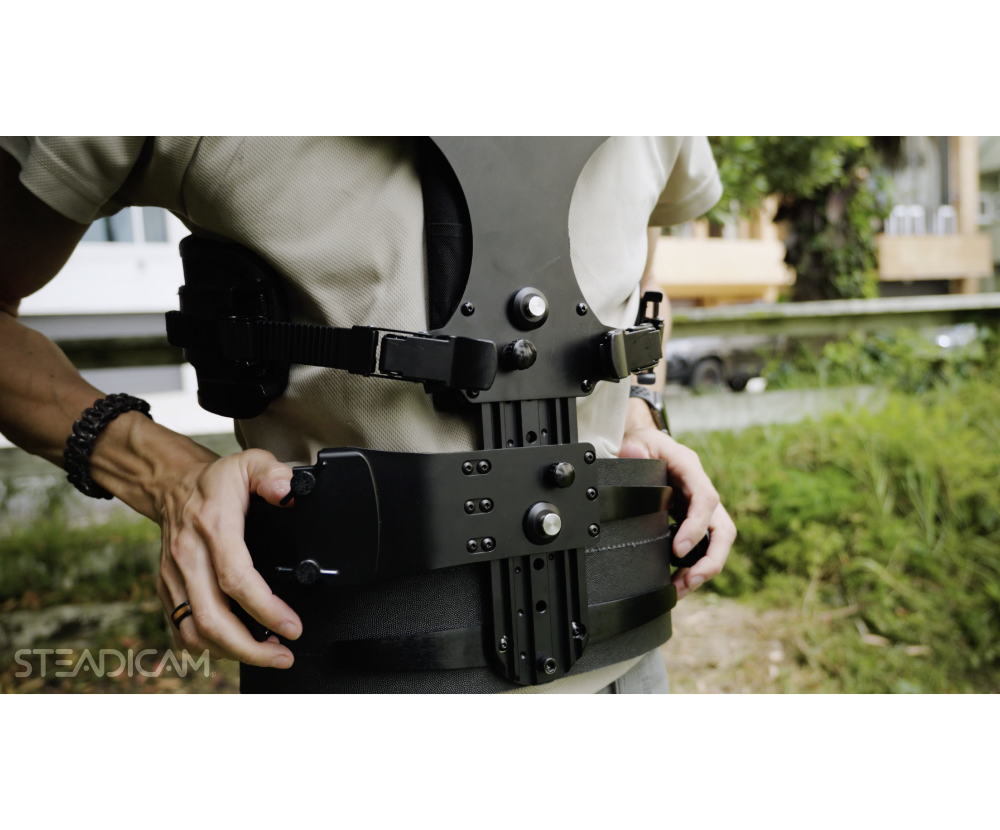

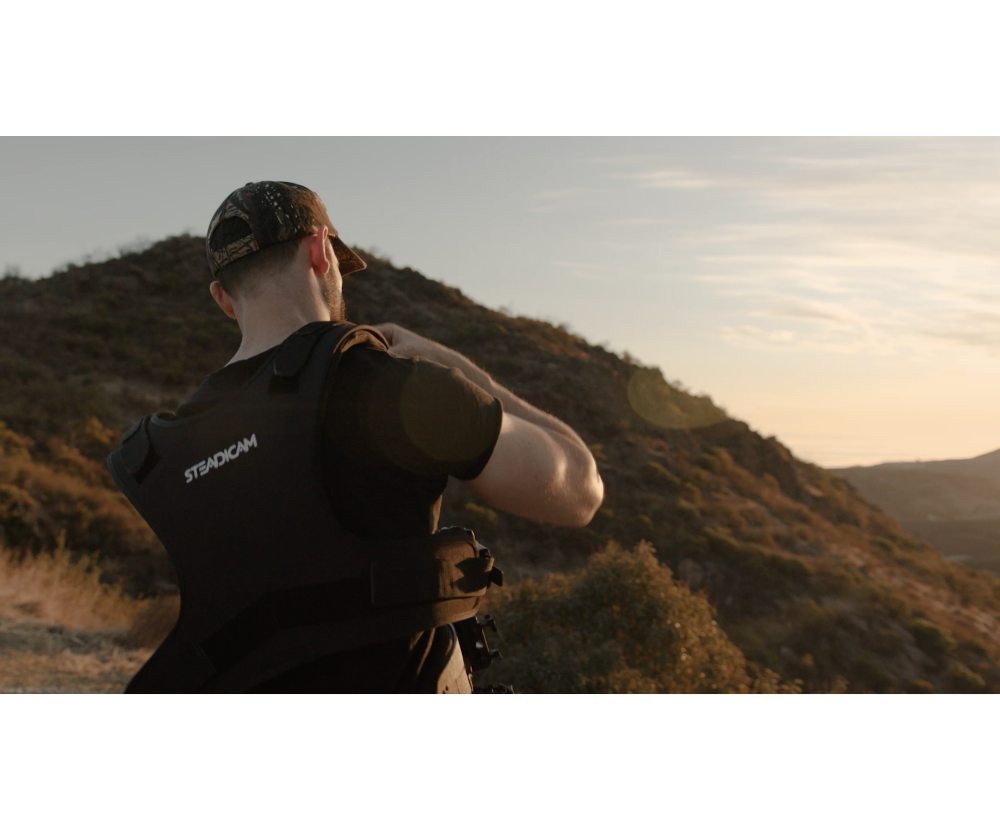

    • Steadicam A-30 Vest
    • Docking Bracket

A New Chapter Begins

Steadicam® Axis™ – 3-axis stabilization gives you precise control without losing connection to the camera.

Steadicam® Axis™ – 3-axis stabilization gives you precise control without losing connection to the camera.

Included:

3-Axis Motorized Volt Gimbal

  • Numerous motor control adjustments include pan, tilt, roll, damping, inertia, and dynamic braking functions that enable precise camera stabilization under various operating conditions
  • Level calibration feature
  • Two gimbal-mounted control buttons
  • Quick startup with no required motor recalibration
  • Tool-free gimbal and post clamps
  • Compatible with 1/2" arm posts



Top Stage

  • New dovetail plate with an integral bubble level and nonslip pads
  • Vernier controlled XY top stage
  • Adjustable lever lock and push-button safety release

Connections on the stage include:

  • Front and rear D-Taps
  • 3-pin push-pull 12V camera power connector
  • Dual HD-SDI compatible BNC video connectors
  • Volt interface connector
  • USB-C connector for software upgradability



Post and Mounts

  • Pivoting, graduated mounts for the monitor and battery
  • 15mm LWS battery and monitor rod systems with M12 internal threading



Base/Bottom Stage

Connections on the base include:

  • 3-pin 12V camera power
  • Dual HD-SDI BNC video connectors
  • 3-pin monitor power connector
  • Six 1/4"-20 threads for balance weights and accessories
  • All-metric construction
  • Includes an extendable docking bracket with an arm hanger
  • Includes a V-mount battery plate
  • Separately available 7" high bright 16:9 LCD monitor with video and power cable

5 Things You Need to Know When Operating a Steadicam® Axis™



5 Things You Need to Know When Operating a Steadicam® Axis™

Gain Control. Get Inspired.

Gain Control. Get Inspired.

Getting Started With The NEW Steadicam® Axis™

Getting Started With The NEW Steadicam® Axis™

An all-new electronically assisted camera stabilizer incorporating the patented Steadicam® Volt™ technology, augmented with a third pan motor for even more precise camera control.

"For the first time we have a small rig that can truly rival the stability of a full high end system. With NEW Axis we can now make this stability happen electronically, without having to lug around all that heavy metal. This allows us to operate longer with less weight, without sacrifice."

— Neal Bryant SOC

Award Winning Technology

Award Winning Technology

Steadicam® Axis™ with Emmy® Award-winning Volt™ electronically assisted, 3-axis camera stabilizer enables the operator to directly control the framing of the shot without feeling disconnected from the camera.

"For the first time we have a small rig that can truly rival the stability of a full high end system. With NEW Axis we can now make this stability happen electronically, without having to lug around all that heavy metal. This allows us to operate longer with less weight, without sacrifice."

— Neal Bryant SOC

"For the first time we have a small rig that can truly rival the stability of a full high end system. With NEW Axis we can now make this stability happen electronically, without having to lug around all that heavy metal. This allows us to operate longer with less weight, without sacrifice."

— Neal Bryant SOC

"For the first time we have a small rig that can truly rival the stability of a full high end system. With NEW Axis we can now make this stability happen electronically, without having to lug around all that heavy metal. This allows us to operate longer with less weight, without sacrifice."

— Neal Bryant SOC
